33. AI4ME | AI for Marine Ecosystems API Demo#
AI/ML API for marine ecosystem research computer vision models. Provides machine learning-based image analysis tools for marine research, including coral bleaching classification and sea urchin detection.
API Link: https://connect.fisheries.noaa.gov/ai4me
🌊 Contact:
Contact: Michael.Akridge@noaa.gov
🔎 Features:
Platform-Agnostic: Accessible via Python, R, command-line, shell, or any HTTP client.
Secure: Requires an API key for restricted endpoints.
Scalable & Fast: Leverages optimized YOLO models for rapid predictions that run on CPU.
Supports Image Uploads: Accepts images up to 20MB.
Research-Focused: Designed for marine ecosystem analysis.
API Endpoints:
Coral bleaching classification (/predict/coral)
Sea urchin object detection (/predict/urchin)
🔑 Access:
Public: /health and /info (no API key needed)
Locked: /predict/coral and /predict/urchin (API key required)

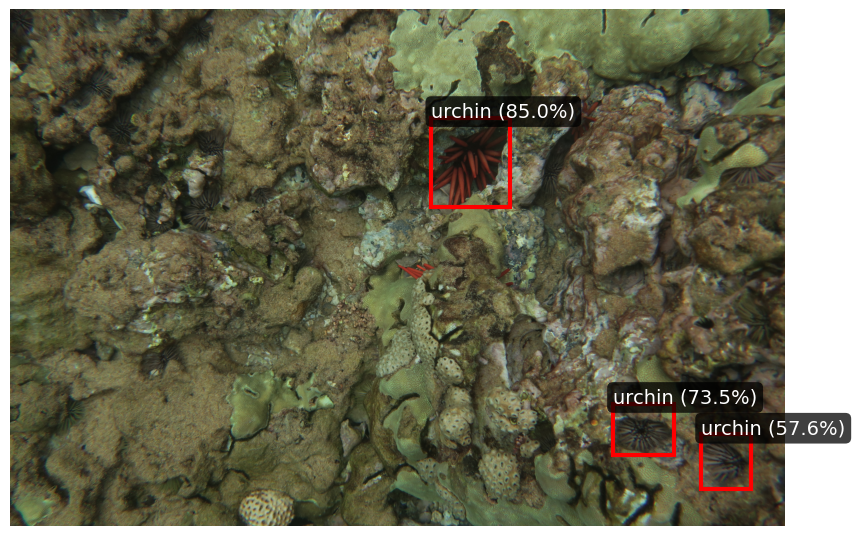

34. Example: Use API with Python to detect urchins#
import requests
from PIL import Image
import matplotlib.pyplot as plt
import matplotlib.patches as patches
import io
import getpass
# -------------------------------
# Setup form for API key
# -------------------------------
API_KEY = getpass.getpass("Enter your API key: ")
# -------------------------------
# Config
# -------------------------------
API_BASE_URL = "https://connect.fisheries.noaa.gov/ai4me"
URCHIN_ENDPOINT = f"{API_BASE_URL}/predict/urchin"
# -------------------------------
# Function to display detections
# -------------------------------
def display_urchin_detections(image_path):
headers = {"X-API-KEY": API_KEY}
# Handle local vs. remote image
if image_path.startswith("http"):
r = requests.get(image_path)
r.raise_for_status()
file_obj = io.BytesIO(r.content)
else:
file_obj = open(image_path, "rb")
files = {"file": file_obj}
response = requests.post(URCHIN_ENDPOINT, headers=headers, files=files)
# Print response for debugging
print("Response status:", response.status_code)
print("Response text:", response.text)
if response.status_code == 200:
detections = response.json().get("detections", [])
image = Image.open(file_obj)
# Create Matplotlib figure
fig, ax = plt.subplots(figsize=(10, 10))
ax.imshow(image)
for det in detections:
bbox = det["bbox"]
cls = det["class"]
confidence = det["confidence"]
label = f"{cls} ({confidence*100:.1f}%)"
# Extract bbox coordinates
x_min, y_min, x_max, y_max = bbox
width, height = x_max - x_min, y_max - y_min
# Draw bounding box
rect = patches.Rectangle((x_min, y_min), width, height, linewidth=3, edgecolor='red', facecolor='none')
ax.add_patch(rect)
# Add label with background
ax.text(x_min, y_min - 5, label, fontsize=14, color="white",
bbox=dict(facecolor='black', alpha=0.75, edgecolor='none', boxstyle="round,pad=0.3"))
ax.axis("off")
plt.show()
else:
print("Request failed:", response.text)
if not image_path.startswith("http"):
file_obj.close()
# -------------------------------
# Run
# -------------------------------
display_urchin_detections("https://storage.googleapis.com/nmfs_odp_pifsc/PIFSC/ESD/ARP/data_management/temp/example_urchin.jpg")
Enter your API key: ··········
Response status: 200
Response text: {"model":"sea_urchin_detector","detections":[{"class":"urchin","confidence":0.8505,"bbox":[2974.38,765.22,3528.17,1394.35]},{"class":"urchin","confidence":0.7354,"bbox":[4257.12,2783.82,4684.24,3146.24]},{"class":"urchin","confidence":0.5763,"bbox":[4879.12,3000.89,5229.92,3388.92]}]}

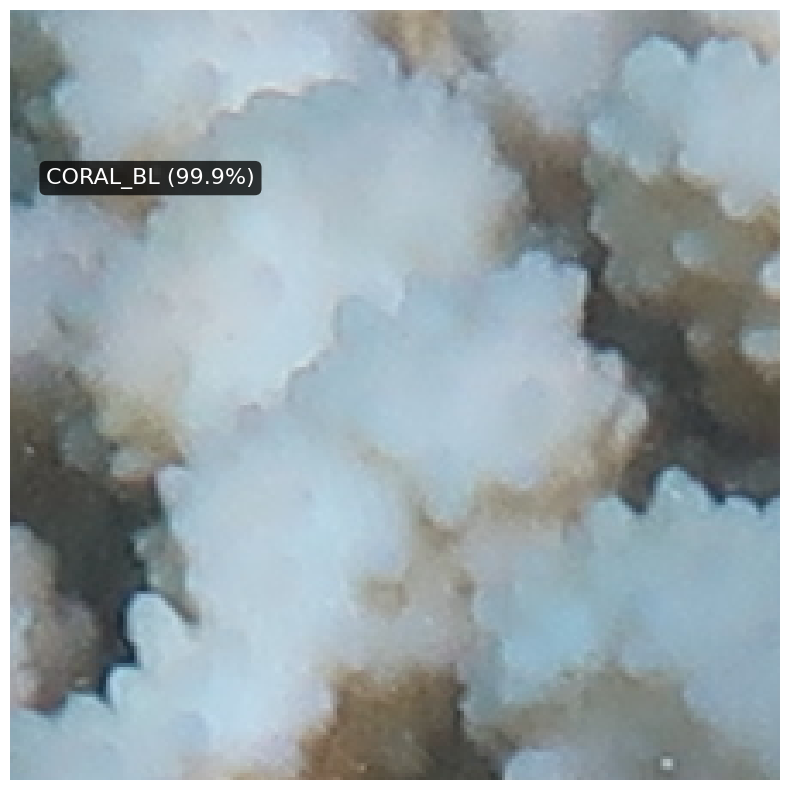

35. Example: Use API with Python to classify coral health (bleaching)#
import requests
from PIL import Image
import matplotlib.pyplot as plt
import getpass
import io
# -------------------------------
# Setup form for API key
# -------------------------------
API_KEY = getpass.getpass("Enter your API key: ")
# -------------------------------
# Config
# -------------------------------
API_BASE_URL = "https://connect.fisheries.noaa.gov/ai4me"
CORAL_ENDPOINT = f"{API_BASE_URL}/predict/coral"
# -------------------------------
# Function to send image & display results
# -------------------------------
def classify_coral_bleaching(image_path):
headers = {"X-API-KEY": API_KEY}
# Handle local vs. remote image
if image_path.startswith("http"):
r = requests.get(image_path)
r.raise_for_status()
file_obj = io.BytesIO(r.content)
else:
file_obj = open(image_path, "rb")
files = {"file": file_obj}
response = requests.post(CORAL_ENDPOINT, headers=headers, files=files)
# Print response for debugging
print("Response status:", response.status_code)
print("Response text:", response.text)
if response.status_code == 200:
predictions = response.json().get("predictions", [])
image = Image.open(file_obj)
# Create Matplotlib figure
fig, ax = plt.subplots(figsize=(10, 10))
ax.imshow(image)
# Display each prediction
y_offset = 50
for pred in predictions:
label = f"{pred['class']} ({pred['confidence']*100:.1f}%)"
ax.text(10, y_offset, label, fontsize=16, color="white",
bbox=dict(facecolor='black', alpha=0.75, edgecolor='none', boxstyle="round,pad=0.3"))
y_offset += 40 # Increase offset for next label
ax.axis("off")
plt.show()
else:
print("Request failed:", response.text)
if not image_path.startswith("http"):
file_obj.close()
# -------------------------------
# Run Test
# -------------------------------
classify_coral_bleaching("https://storage.googleapis.com/nmfs_odp_pifsc/PIFSC/ESD/ARP/data_management/temp/example_coral.png")
Enter your API key: ··········
Response status: 200
Response text: {"model":"coral_bleaching_classifier","predictions":[{"class":"CORAL_BL","confidence":0.9989}]}
⚠️ Usage Disclaimer: This API is for research and educational purposes only.
Use responsibly; predictions are not a substitute for expert analysis.
